MECHANICAL TECHNOLOGY: WELDING
GRADE 12
NATIONAL SENIOR CERTIFICATE
MEMORANDUM
SEPTEMBER 2018

QUESTION 1: MULTIPLE-CHOICE QUESTIONS (GENERIC)
1.1 D ✓ (1)
1.2 C ✓ (1)
1.3 D ✓ (1)
1.4 D ✓ (1)
1.5 D ✓ (1)
1.6 B ✓ (1)
[6]

QUESTION 2: SAFETY (GENERIC)
2.1 Unsafe conditions:

  • Working at unsafe speeds. ✓
  • Grinding without goggles. ✓
  • Fooling and playing around workshop. ✓
  • Spilling liquids on floor. ✓
  • Lubricating/cleaning moving parts. ✓
  • Wearing loose clothing near moving parts. ✓
  • Grinding on the side of the grinding wheel. ✓(Any 4 x 1) (4)

2.2 Assessing a first aid situation:

  • Environmental observation. ✓
  • Visible signs and symptoms. ✓
  • Indicators to diagnosis. ✓
  • Vital functions. ✓
  • Stopping any serious bleeding. ✓
  • Immediate treatment of cardiac arrest. ✓(Any 2 x 1) (2)

2.3
2.3.1 Advantages of product layout:

  • Handling of material is limited to a minimum. ✓
  • Time period of manufacturing cycle is less. ✓
  • Production control is almost automatic. ✓
  • Greater use of unskilled labour is possible. ✓
  • Less total inspection is required. ✓
  • Less total floor space is needed per unit of production. ✓(Any 2 x 1) (2)

2.3.2 Advantages of the process layout of machines

  • High machine utilisation because more than one product is manufactured. ✓
  • Better supervision as a result of subdivision of processes.✓
  • Less interruption in flow of work when machines become defective. ✓
  • Lower equipment cost, since one machine can produce more than one product. ✓
  • Better control of total manufacturing cost. ✓
  • Greater flexibility in the production process.✓(Any 2 x 1) (2)

[10]

QUESTION 3: MATERIALS (GENERIC)
3.1 Purpose of case-hardening.
The objective is to produce a hard case over a tough core. ✓✓ (2)
3.2 Factors of hardness.

  • Work piece size ✓
  • Quenching rate ✓
  • Carbon content ✓ (3)

3.3 Four kinds of quenching mediums.

  • Water and salt (brine) ✓
  • Tap water ✓
  • Liquid salts ✓
  • Molten lead ✓
  • Soluble oil and water ✓
  • Oil ✓ (Any 4 x 1) (4)

3.4 Reason for hardened steel to be tempered:
To reduce brittleness ✓ and to give the workpiece a more fine-grained structure ✓ (2)
3.5 Test on materials:

Related Items

Type of Test Mild Steel High Speed Steel Cast Iron
Sound Test Medium metallic sound ✓ Low ring sound ✓ Dull sound ✓

(3)
[14]

QUESTION 4: MULTIPLE-CHOICE QUESTIONS (SPECIFIC)
4.1 D ✓ (1)
4.2 C ✓ (1)
4.3 B ✓ (1)
4.4 D ✓ (1)
4.5 A ✓ (1)
4.6 C ✓ (1)
4.7 B ✓ (1)
4.8 B ✓ (1)
4.9 A ✓ (1)
4.10 B ✓ (1)
4.11 D ✓ (1)
4.12 D ✓ (1)
4.13 B ✓ (1)
4.14 D ✓ (1)
[14]

QUESTION 5: TERMINOLOGY (TEMPLATES, ROLLING AND BENDING) (SPECIFIC)
5.1 Advantages of lattice girders:
Lattice girders tend to be very rigid ✓ and give good strength to weight ratios over long spans. ✓ (2)
5.2 Calculation on basketball hoop:
Mean Ø = Outside Ø – Bar thickness
Mean Ø = Inside Ø + Plate thickness
Mean Ø = 380 + 16 mm
= 396 mm
Mean circumference = 𝜋 × 𝑚𝑒𝑎𝑛 𝜃✓
= 𝜋 × 396✓
= 1 244,23 ✓
= 1 244 mm ✓ (4)
5.3 Weld symbol:
1
(2)
5.4 Template loft:
It is a very important section of a structural workshop, ✓ usually away from the main workshop where quietness and better light facilities are available. ✓ (2)
5.5 Purpose of purlins:
To support the roof coverings ✓✓ (2)

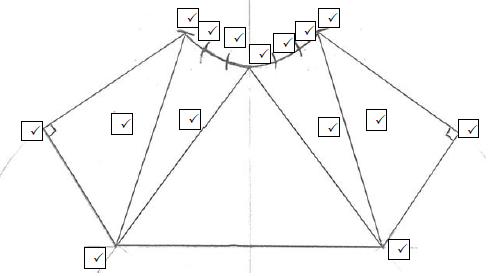

5.6 Sketches of different templates:
5.6.1 Flange template
2
(3)
5.6.2 Strip template
3
(3)
5.6.3 Web template
4
(3)
5.7 Basic principles of marking-off:

  • Measure accurately ✓
  • Show all detail ✓
  • Scribe lines must be clearly visible
  • Use a prick punch to make lines clearer and permanent (Any 2 x 1) (2)

[23]

QUESTION 6: TOOLS AND EQUIPMENT (SPECIFIC)
6.1
6.1.1 Bench grinder ✓
Function:
It is used to drive abrasive wheels, which hand grind cutting tools and perform other rough grinding. ✓ (2)
6.1.2 Power-driven guillotine ✓
Function:
To cut plates. ✓ (2)
6.1.3 Power saw ✓
Function:
It is used to roughly cut large sections of metal before they are further machined or used in manufacturing. ✓ (2)
6.1.4 Pedestal drill press ✓
Function:
Used to drill a wide variety of materials including ferrous and non-ferrous metals and composite plastics. ✓ (2)
6.1.5 Hydraulic press ✓
Function:
To install or remove components, such as bearings or bushes, in mechanical devices ✓ (2)
6.1.6 Oxy- acetylene equipment: ✓
Function:
To enable gas welding or cutting, by means of the oxy-acetylene flame ✓ (2)
6.2 Drill bit sizes
6.2.1 8 mm → 6, 8 mm to be drilled ✓(1)
6.2.2 10 mm → 8, 5 mm to be drilled ✓ (1)
6.3 Power saw
The blade is tensioned in the frame and cuts in a forward and backwards (reciprocating) motion similar to that of a hacksaw. ✓ (1)
6.4 Type of roller
Pyramid bending rolls ✓ (1)
6.5 Cutting limitations of plasma cutters:
Hand held torches can cut up to 38 mm thick ✓
Computer controlled torches can cut up to 150 mm thick plates ✓ (2)
[18]

QUESTION 7: FORCES (SPECIFIC)

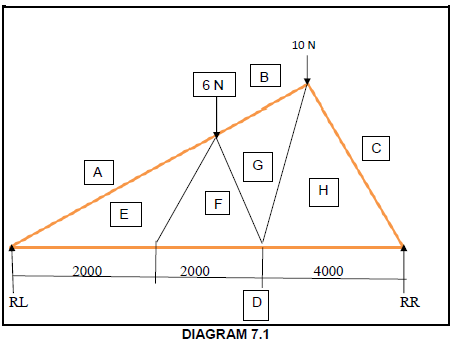

7.1
7.1.1 RR: RL X 8 = (10 x 2) + ( (6 x 5) ✓
= 20 + 30
= 50 ✓
RL = 6,25 N✓
RL: RR X 8 = (6 x 3) + (10 x 6) ✓
= 18 + 60
= 78 ✓
RR = 9,75 N ✓ (6)
5

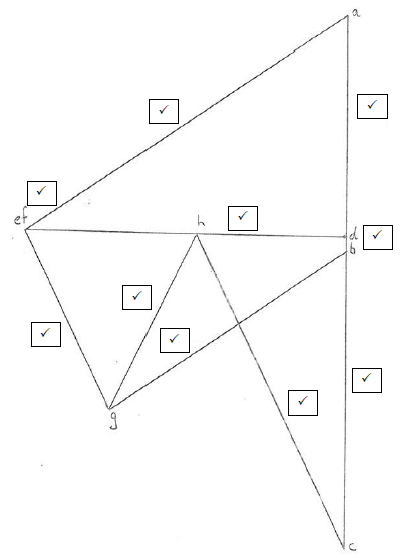

7.1.2
6
(10)
7.2 Definitions:
Strain: Is the ratio between the change in length and the original length and is expressed as a constant. ✓✓ (2)
Stress: It is an external force applied to an object. Force per unit area. ✓✓ (2)

7.3 Stress = 𝐿𝑜𝑎𝑑
                    𝐴𝑟𝑒𝑎 ✓
= 60 𝑋 103
   45 𝑋 45
     106 ✓✓
= 60 𝑋 103 𝑋 106
      45 𝑋 45 ✓
= 60 𝑋 109
     2025 ✓
= 29 629 629,63 Pa ✓

OR
= 29,63 MPa
E = 𝑆𝑇𝑅𝐸𝑆𝑆
      𝑆𝑇𝑅𝐴𝐼𝑁 ✓
= 29 629 629,63
       150 𝑋 109
Strain = 1,975308 x 10−3
STRAIN = 𝐶𝐻𝐴𝑁𝐺𝐸 𝐼𝑁 𝐿𝐸𝑁𝐺𝑇𝐻
                  𝑂𝑅𝐼𝐺𝐼𝑁𝐴𝐿 𝐿𝐸𝑁𝐺𝑇𝐻 ✓
= 1,975308 x 10−4 x 2 m ✓
Change in Length = 3,95 X 10−4✓
= 0,395 mm ✓ (13)
[33]

QUESTION 8: JOINING METHODS (SPECIFIC)
8.1 Non-destructive tests:

  • Liquid dye penetrant test ✓
  • X-Ray test ✓
  • Ultrasonic test ✓(3)

8.2 Nick-break test:

  • Make a hacksaw cut through the centre of the weld. ✓
  • Cut should be about 6,5 mm deep. ✓
  • Place the saw-nicked specimen on two steel supports. ✓
  • Use a sledgehammer to break the specimen by striking it in the zone where you made the saw cuts. ✓
  • The weld metal exposed in the break should be completely fused and should be free from slag inclusions and contain no gas pockets greater than 1,6 mm.✓
  • There should be not more than one pore or gas pocket per square centimetre. (5)

8.3 Factors of a good arc:

  • The surface condition✓
  • The travel speed ✓
  • The welding current ✓
  • The arc voltage ✓
  • The angle of the torch/electrode/shroud (Any 4 x 1) (4)

8.4 Welding defects:

  • Incomplete penetration ✓
  • Lack of fusion ✓
  • Porosity ✓
  • Undercutting ✓
  • Distortion
  • Cracks
  • Spatter
  • Slag inclusion (Any 4 x 1) (4)

8.5 Methods to reduce stress:
Peening ✓
Controlled heating, followed by controlled cooling ✓ (2)
8.6 Welding spatter:
It is the little droplets of molten material that are generated at or near the welding arc. ✓✓
It is generally regarded as a nuisance and is a critical factor to consider when developing an application. (2)
8.7 Cause of spatter:
A disturbance in the molten weld pool during the transfer of wire into the weld, ✓caused by voltage being too low or amperage being too high. ✓ (2)
8.8 Oxy-acetylene mild steel flame:
Neutral flame ✓ (1)
[23]

QUESTION 9: JOINING METHODS (STRESSES AND DISTORTION) (SPECIFIC)

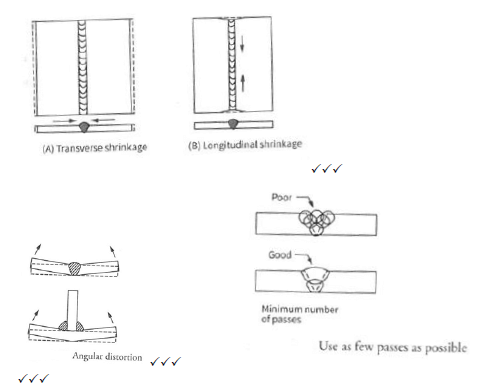

9.1
7
(9)
9.2 Types of cracks:
HAZ(Heat affected zone)cracks ✓
Centre line cracks✓
Crater cracks ✓
Transverse cracks ✓ (4)
9.3 Criteria for free bend test:
It measures the ductility of the weld deposit and the heat affected area adjacent to the weld. ✓
It is used to determine the percentage of elongation of the weld metal. ✓ (2)
9.4 Advantages of liquid dye over X-ray or ultra-sonic test:

  • Good for ferrous and non-ferrous metals ✓
  • Low cost ✓
  • Easy to apply and interpret ✓
  • Minimal training required (Any 3 x 1) (3)

QUESTION 10: MAINTENANCE (SPECIFIC)
10.1 Results of a lack of lubrication:
Overloading ✓
Friction ✓ (2)
10.2 Definition of friction:
Rubbing of one part✓ against another ✓(2)
10.3 Overloading:
Excessive loads on machine parts ✓
Running a machine or device at a rate higher than at which it was designed to operate ✓ (2)
10.4 Consequences of overloading –guillotine:
Cutting plate of excessive thickness or hardness will damage both the blade ✓and hydraulic system, resulting in costly damage ✓ (2)
[8]

QUESTION 11: TERMINOLOGY (DEVELOPMENT) (SPECIFIC)

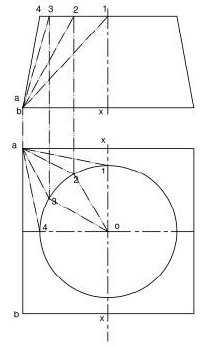

11.1
8
11.1.1 A – B : (1 – 2) = 𝑛 𝑋 30
                                       12 ✓
= 94,26
     12
= 7,85 ✓ (3)
11.1.2 (A – 1) : X – 1 = √(𝑜𝑥−𝑅)2+ℎ2
= √(45−15)2+502
= 73,65 ✓ (3)
11.1.3 (1 – a) = √(37,52+322+ 502 ✓✓
= 70,2 ✓✓ (4)
11.1.4 2 – a = √(45−15 𝐶𝑜𝑠30º + (45 – 15 Sin 30º + 502
= √(322 + 37,52 + 502) ✓
= √4930,25 ✓
= 70,2✓ (4)
11.1.5 a - 3 = √(45−15 𝐶𝑜𝑠30º + (45 – 15 Sin 30º + 502) ✓
= √(322 + 37,52 + 502) ✓
= √4930,25 ✓
= 70,2 ✓ (4)
9
(15)
[33]
TOTAL: 200
